How To Wire A Amp Meter On A Tractor. Check the voltage at the b+ terminal of the regulator with the tractor running at least 3/4 throttle. You should be able to measure in the range of 13. 5 to 14. 5 volts at the. Start with disconnecting the battery ground cable.

How To Wire A Amp Meter On A Tractor
from: www.yesterdaystractors.com

hooking up amp meter to 880 – Yesterday's Tractors

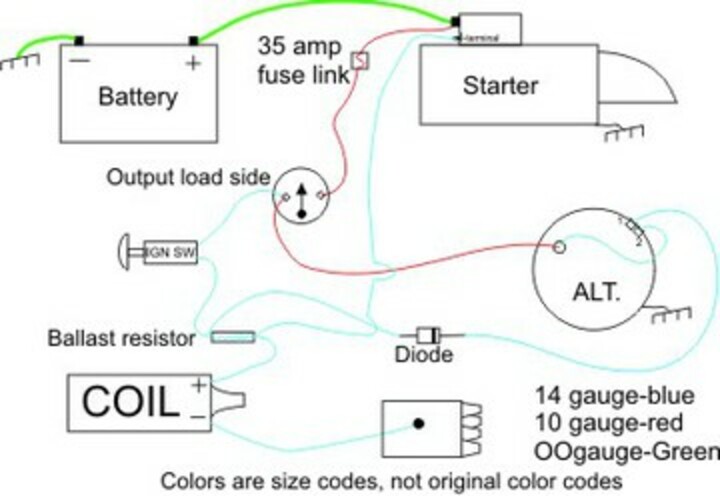

Wire the supply side of ammeter to the battery then on its other load side wire the loads like lights and ignition plus wire the alternators output, then it will correctly register. How to make the conversion from an ampmeter to a voltmeter, and what is needed to know about the wiring. buy voltmeter here; Connect an 8 awg ((10. 0 mm2) wire, minimum, with an insulationtemperature rating of 220° f (105° c), minimum, from the battery “+”terminal on the starter solenoid to the right terminal.

Video | michael n jenny francis step 2: Connect an 8 awg (10. 0 mm 2) wire from the battery terminal or the alternator. Connect a minimum 10awg wire from the “+12v” terminal of the starter solenoid to terminal “i” on the back of the gauge. , connect a good ground to terminal “g” on the back of the gauge.

Disconnect the wire from the “hot” side of the starter switch and attach.

Amp meter – Ford 9N, 2N, 8N Forum – Yesterday's Tractors

How to make the conversion from an Ampmeter to a Voltmeter, and what is needed to know about the wiring. Buy Voltmeter here; amzn.to/2M0MDQ9. How To Wire A Amp Meter On A Tractor

Amp meter - Ford 9N, 2N, 8N Forum - Yesterday's Tractors How To Wire A Amp Meter On A Tractor
